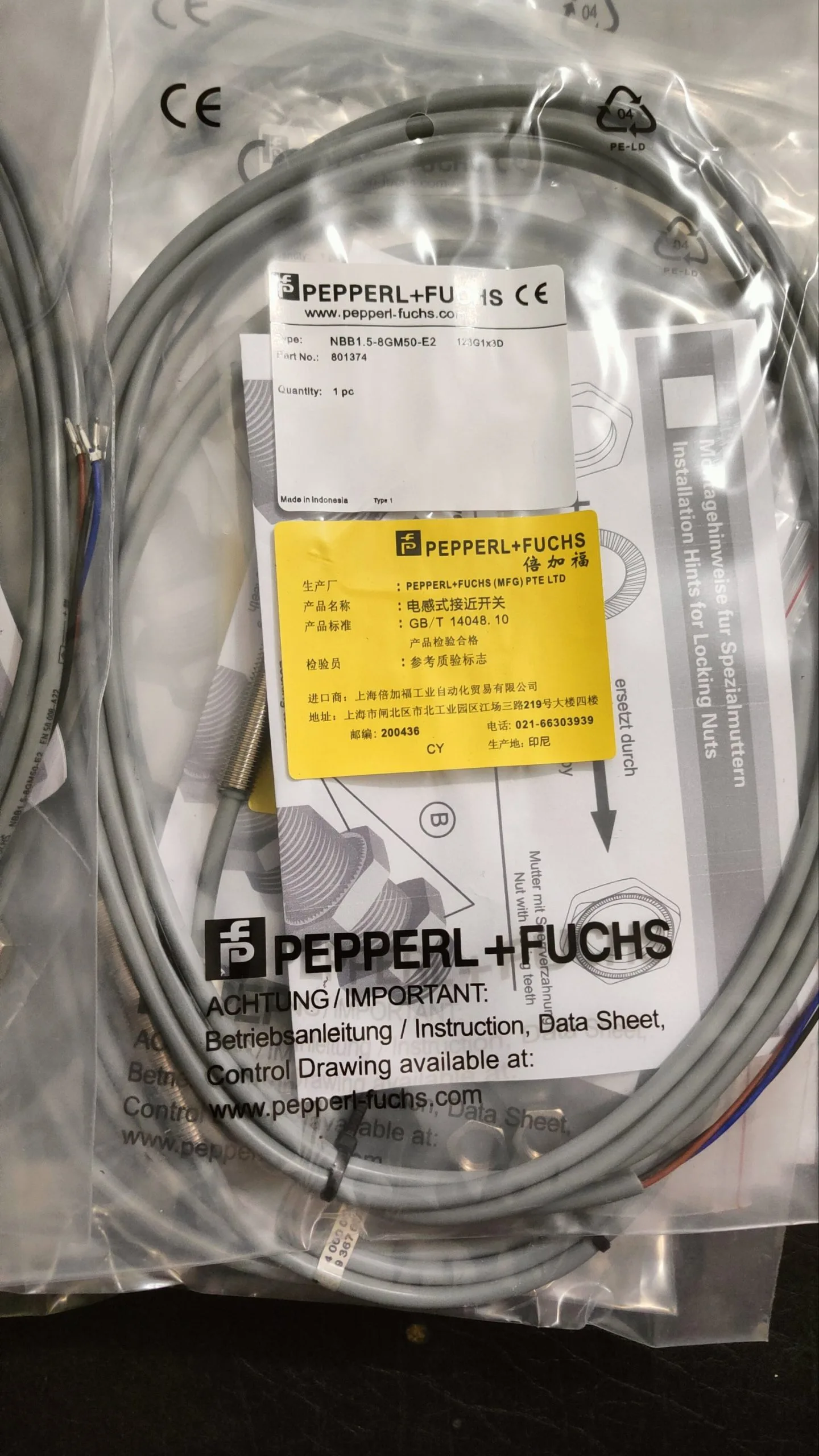

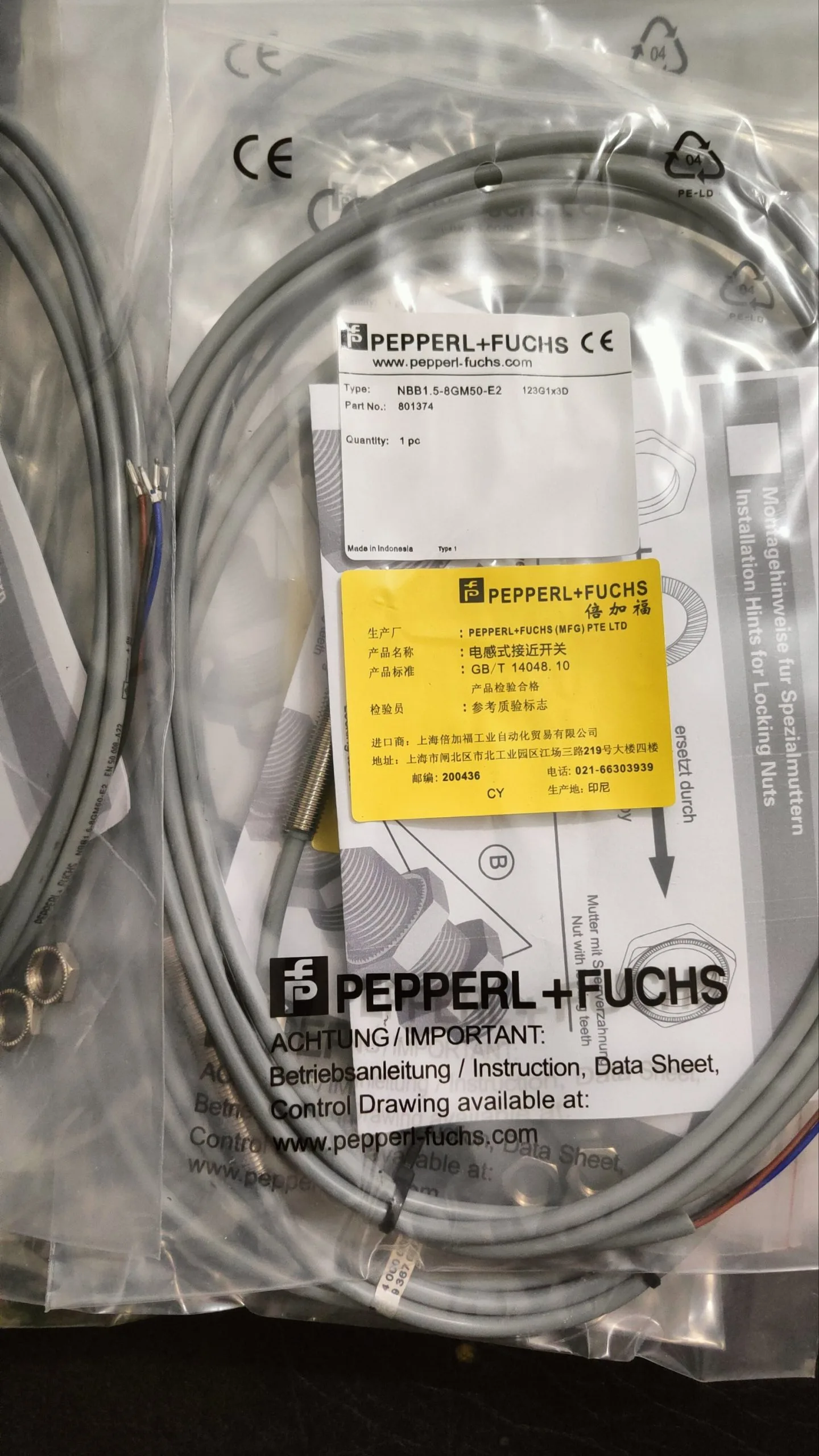

P+F NBB1.5-8GM50-E2

General specifications

Switching element function PNP Make function

Rated operating distance sn 1.5 mm

Assured operating distance sa 0 … 1.215 mm

Reduction factor rAl 0.45 Reduction factor rCu 0.35

Reduction factor rV2A 0.75 Operating voltage UB 10 … 30 V Switching frequency f 0 … 1500 Hz

Reverse polarity protection protected against reverse polarity

Voltage drop Ud ≤ 3 V Operating current IL 0 … 100 mA

Off-state current Ir 0 … 0.5 mA typ. 0.1 µA at 25 °C

No-load supply current I0 ≤ 15 mA

Indication of the switching state LED, yellow

Standards IEC / EN 60947-5-2:2004

Ambient conditions

Ambient temperature -25 … 70 °C (248 … 343 K)

Connection type V1-connector

Housing material brass, nickel-plated

Sensing face PBT Protection degree IP67
