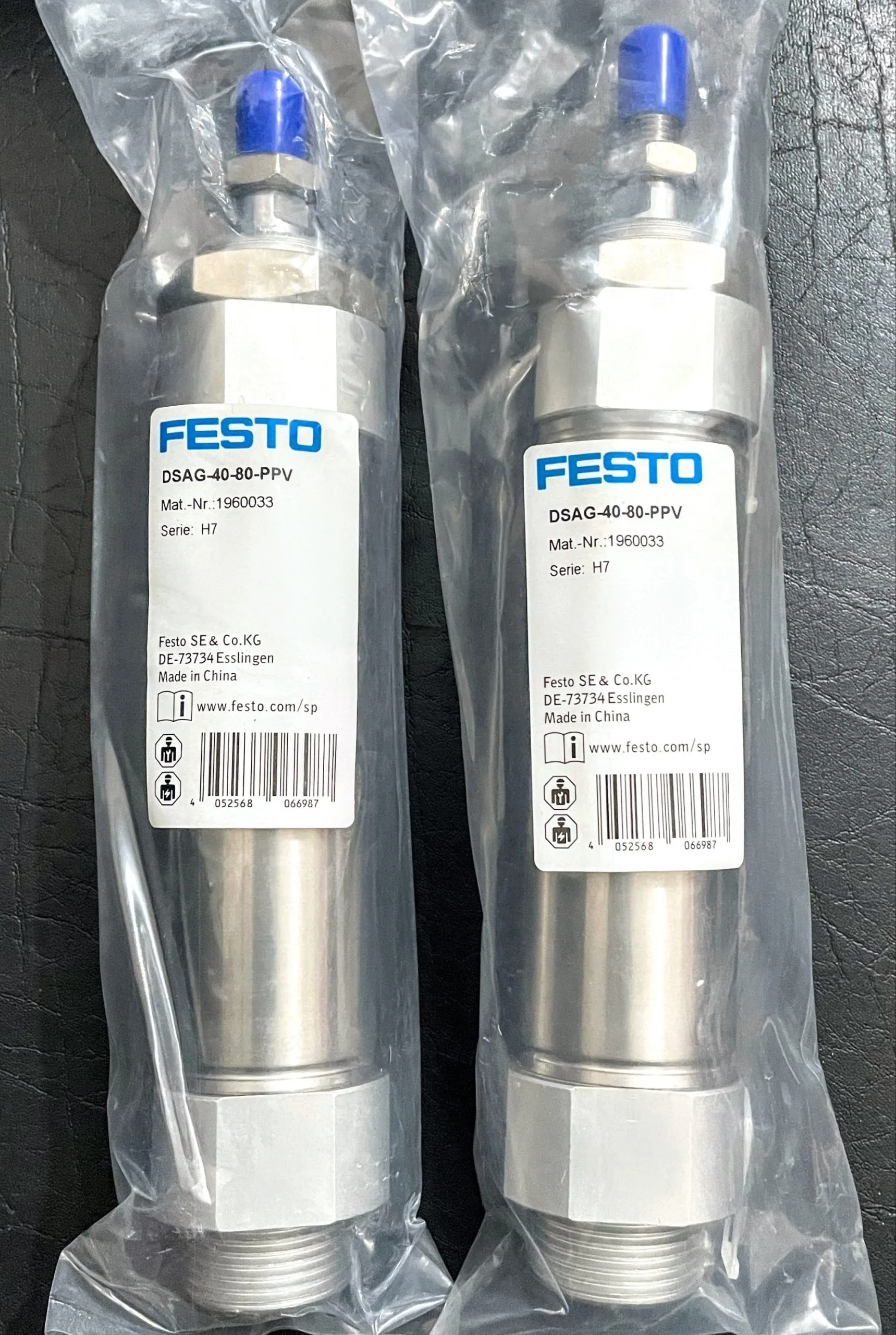

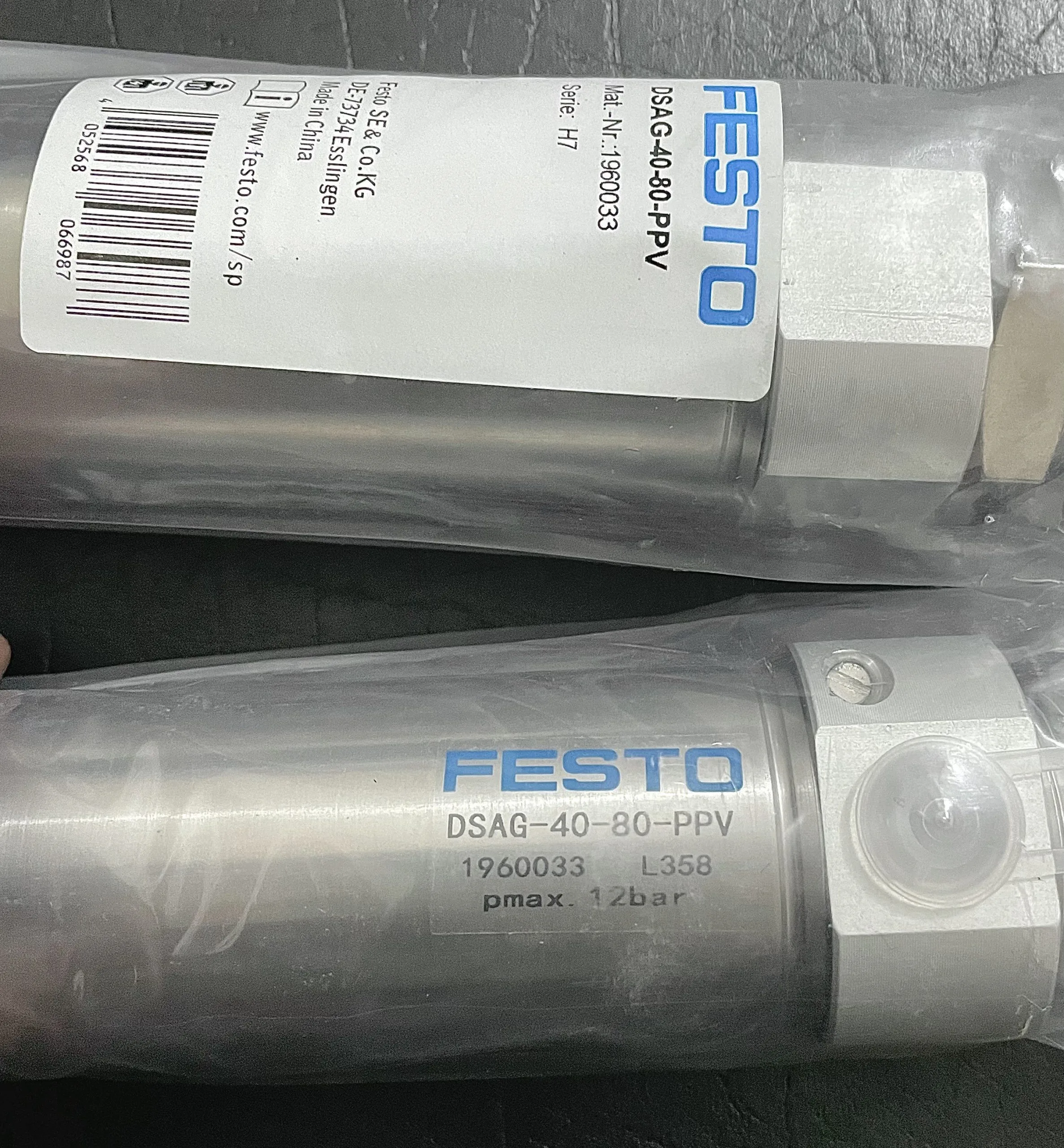

Festo Cylinder DSAG-40-80-PPV

Description

Part No:19603 Model: DSAG-40-80-P Technical Data Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 752.9 N Stroke 80 mm Piston diameter 40 mm Piston rod thread M12x1.25 Cushioning Pneumatic cushioning, adjustable at both ends Operating pressure 0.1 MPa ... 1 MPa Operating pressure 1 bar ... 10 bar Mode of operation Double-acting Lubricated operation is possible (in which case lubricated operation will always be required) Corrosion resistance class CRC 2 - Moderate corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Ambient temperature -20 °C ... 80 °C Cushioning length 18 mm Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke 633.3 N Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 752.9 N Moving mass 358G Product weight 853G
